Please read instructions carefully before using




  • GUNIWHEEL™ is designed as an alternative to jack stands and other vehicle mounts that leave vehicles immobile. It is intended for safe mounting and moving purposes.

  • GUNIWHEEL™ is not a spare tyre. It is not intended for road use. It may be used to move vehicles around a shop or lot at a max speed of 5mph/8kmh.

  • Before installation, make sure the hub/rotor is securely attached to the VEHICLE and free of any damage.

  • GUNIWHEEL™ 45 & 56 are fully patented products. U.S. Patent #D874387

Figure 1

Figure 1

  • If the vehicle has oversized brake calipers, a GUNISPACER™ should be used behind the GUNIWHEEL™ to create enough clearance from the caliper to allow an unobstructed rotation of the GUNIWHEEL™ while securing the correct position against the hub/rotor. (see Fig 1)

  • The GUNISPACER™ should only be used as a brake caliper clearance device. It is not a washer for bolts and lug nuts that are not the suitable size to secure the GUNIWHEEL™.

  • If oversized brake calipers are not present on the vehicle, skip to step 2.

Figure 2

Figure 2

  • Align the GUNIWHEEL™ with the lug pattern of the vehicle. GUNIWHEEL™ 45 fits most standard size vehicles with 4 & 5 lug pattern configurations. GUNIWHEEL™ 56 is for trucks and large SUV with larger centerbores and 5 & 6 lug pattern configurations. PCD compatibility is location on their product pages.

  • Place the GUNIWHEEL™ flush against the hub/rotor. (see Figure 2)

Figure 3

Figure 3

  • We strongly recommend using M15 6mm GUNIWASHERS with GUNIWHEEL™ (see fig 3).

  • By using GUNIWASHERS, you will prevent damage to the GUNIWHEEL™ face and prevent lug nut/bolt over-tightening.

  • GUNIWASHERS are available from your local distributor or on our website here

Figure 4

Figure 4

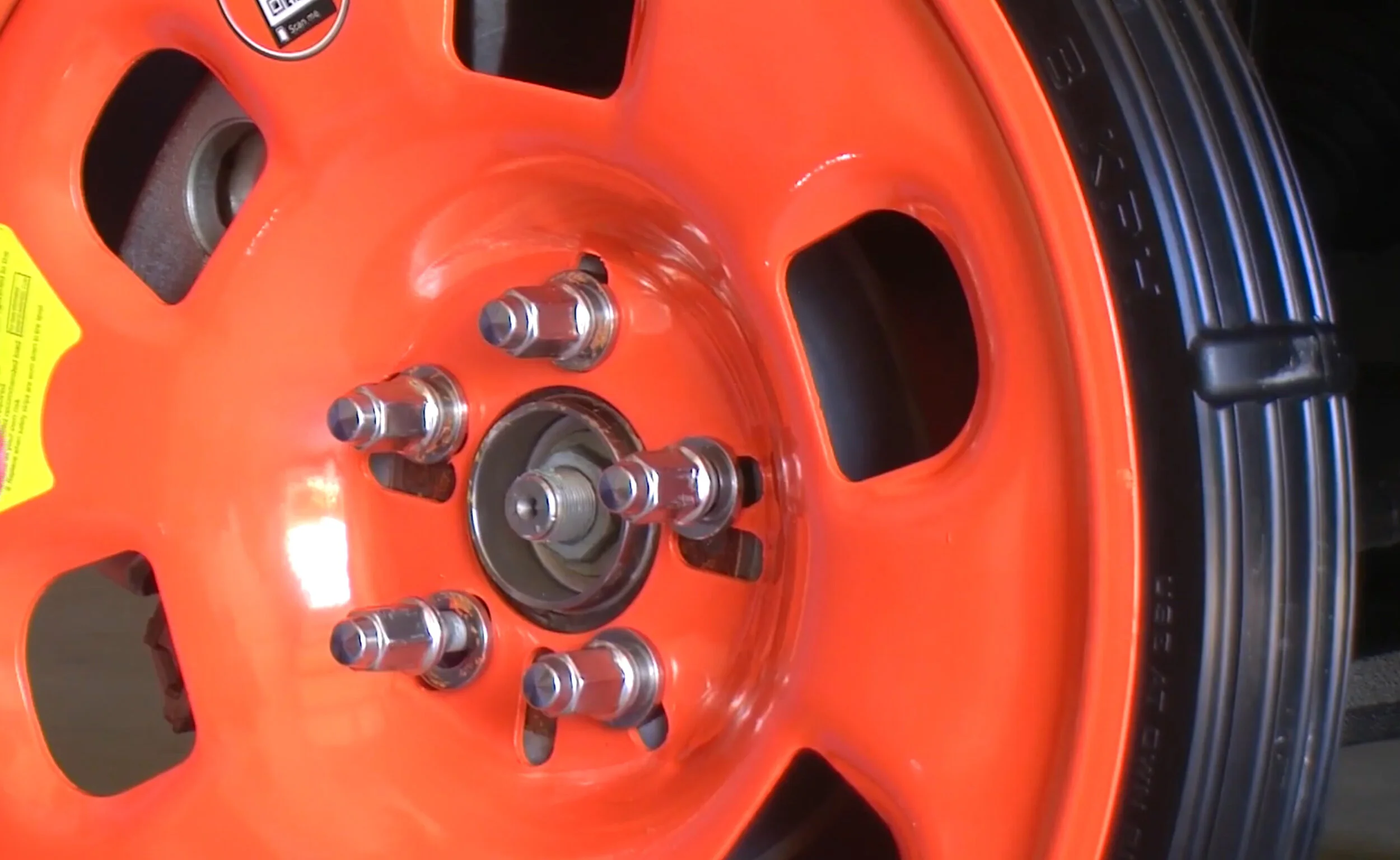

  • Install lug nuts or lug bolts halfway to snug. Most OEM bolts and lug nuts will fit the patented GUNIWHEEL™ mounting assembly.

  • If the original OEM bolts or lugnuts are unable to secure the GUNIWHEEL™ to the vehicle hub/rotor then GUNINUTS or GUNIBOLTS should purchased to suit the vehicles bolt, lug nut, and thread specification to enable secure installation of the GUNIWHEEL™ (see Fig 4)

  • Correct Bolts Sizes: M14 x 23 mm x 1.5 mm or M14 x 23 mm x 1.25 mm

  • Correct Nut Size: M14 open end nut

  • GUNIBOLTS and GUNINUTS are available online at WWW.GUNIWHEEL.CO.ZA

Figure 5

Figure 5

  • Tighten the bolts or lug nuts to snug - 50 lbs max torque.

  • Make sure the lug nuts or bolts are tighten GUNIWHEEL™ securely against the hub. (see Fig 5).

  • If there is any noticeable movement of the GUNIWHEEL™ once the lug nuts or bolts are tightened to 50 lbs max torque , then the installation is not correct. The GUNIWHEEL™ should be remounted and tightly secured to the hub/rotor.

  • Do not over torque the lug nuts/bolts as this may damage to the lug pattern. 50 lbs max torque



Figure 6

Figure 6

  • Motorized use of a vehicle with the GUNIWHEEL™ has a max speed limit of 5mph/8kmh.

  • The GUNIWHEEL™ comes equipped with speed humps on the rubber tread (see Fig 6).

  • These humps will shake the vehicle at speeds over 5mph/8kmh.

  • We recommend replacing the GUNIWHEEL™ when the speed humps are worn to a level even with the rubber tread.

  • GUNIWHEEL™ can hold up to 2,500 lbs each.

  • The makers of GUNIWHEEL™ are not liable for any damages as a result of improper installation or non-recommended use.
